Support Vector Machine Explained: 7 Powerful Concepts

Learn Support Vector Machine Explained with step-by-step examples, SVM concepts, kernels, and real-world applications in machine learning.

Support Vector Machine Explained is one of the most important topics in machine learning. If you want to understand how modern classification models work, learning SVM is a great place to start.

A support vector machine (SVM) is a supervised learning algorithm used for classification and regression. In simple terms, it finds the best decision boundary, called a hyperplane, to separate different classes of data.

What makes a support vector machine powerful is its focus on maximizing the margin between classes. Instead of just separating data, it creates the widest possible gap, which helps improve accuracy on complex and high-dimensional datasets.

Another key idea in Support Vector Machine Explained is its ability to handle nonlinear data using the kernel trick. This allows SVM models to capture patterns that are difficult to separate in lower dimensions.

In this guide on Support Vector Machine Explained, you will learn how support vector machine works, along with its key concepts and real-world applications.

What is Support Vector Machine in Machine Learning

A support vector machine (SVM) is a powerful supervised learning algorithm used to classify data by finding the best possible decision boundary between different classes.

In simple terms, the support vector machine algorithm separates data into groups using a boundary called a hyperplane. The goal is not just to divide the data, but to do it in the most optimal way.

Simple Explanation

Imagine you have two groups of points:

• Red points (Class A)
• Blue points (Class B)

A support vector machine draws a line (in 2D) or a plane (in higher dimensions) that separates these groups. However, it does more than simple separation.

Instead, SVM focuses on creating the maximum gap between the two classes, which helps improve accuracy and generalization.

Key Concepts in Support Vector Machine Explained

• Hyperplane in machine learning – the decision boundary that separates classes
• Support vectors – the closest data points to the boundary that define it
• Margin maximization – the distance between the boundary and the nearest points
• Decision boundary – the line or surface that divides different classes

SVM Intuitive Explanation with Example

To better understand Support Vector Machine Explained, let’s look at a simple example.

Suppose you want to classify emails into two categories:

• Spam
• Not Spam

A basic model might draw any line to separate these two groups. However, a support vector machine works differently.

Instead of choosing a random boundary, SVM:

• Finds all possible separating lines
• Selects the one with the largest margin between the two classes
• Uses support vectors (the closest data points) to define the boundary

Because of this approach, SVM does not just separate data—it creates a boundary that improves accuracy and generalization. This is why SVM is widely used for classification tasks in machine learning.

How Support Vector Machine Works Step-by-Step

Understanding how Support Vector Machine Explained works step by step will help you grasp the core idea behind this powerful algorithm.

Step 1: Load and Prepare Data

First, collect and prepare your dataset for training.

• Remove noise and irrelevant data
• Normalize or scale features
• Handle missing values

Clean data is essential for building an accurate SVM model.

Step 2: Represent Data in Feature Space

Next, each data point is plotted in a multi-dimensional space.

• X-axis → Feature 1
• Y-axis → Feature 2

In real-world problems, there can be many features, creating a high-dimensional space. This is known as the feature space, where SVM performs classification.

Step 3: Find Possible Hyperplanes

The support vector machine algorithm generates multiple possible decision boundaries.

Each hyperplane attempts to separate the data into different classes. However, not all boundaries are equally good.

Step 4: Maximize the Margin

SVM selects the hyperplane that creates the maximum margin between classes.

• Larger margin → better generalization to new data
• Smaller margin → higher risk of overfitting

This margin maximization is the key reason why SVM performs well, especially on complex datasets.

Step 5: Identify Support Vectors

Support vectors are the data points closest to the decision boundary.

• They define the position of the hyperplane
• Even a small change in these points can affect the model

Because of this, SVM focuses only on the most important data points rather than the entire dataset.

Step 6: Apply Kernel Trick (If Needed)

In many real-world cases, data is not linearly separable.

To solve this, SVM uses the kernel trick:

• Transforms data into a higher-dimensional space
• Makes it easier to separate complex patterns
• Applies kernel functions like linear, polynomial, or RBF

This allows SVM to handle nonlinear classification problems effectively.

To understand this process in detail, check this step-by-step guide on how machine learning works step by step.

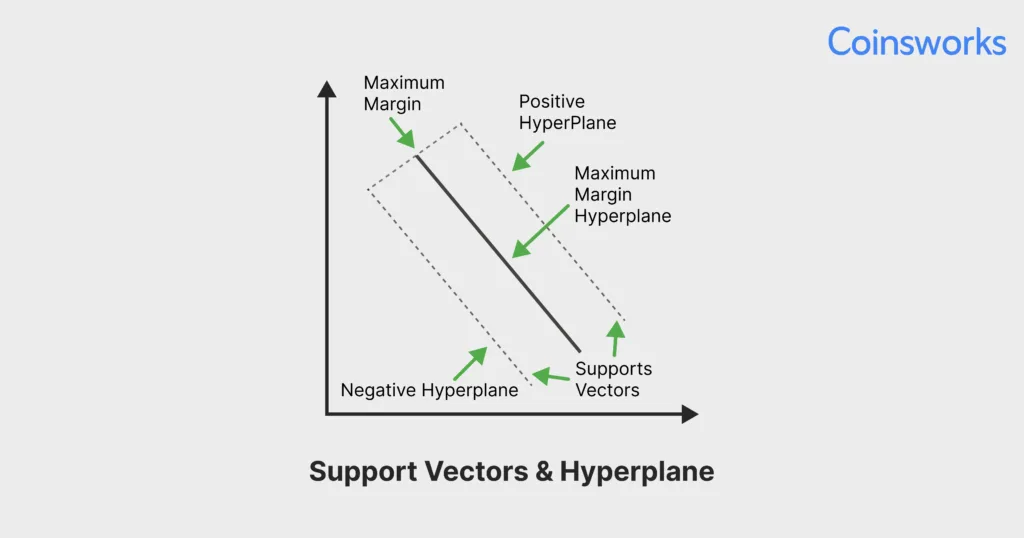

Hyperplane and Margin Explained in Support Vector Machine

To fully understand Support Vector Machine Explained, you need to grasp two key concepts: hyperplane and margin.

The hyperplane is the decision boundary that separates different classes in the dataset. In a 2D space, it appears as a line, while in higher dimensions, it becomes a plane or surface.

The margin is the distance between the hyperplane and the closest data points from each class. These closest points are known as support vectors.

Why Margin Matters in SVM

Margin maximization is what makes the support vector machine algorithm powerful. Instead of just separating classes, SVM ensures the separation is as wide as possible.

This leads to several benefits:

• Improves model accuracy on unseen data
• Reduces the risk of overfitting
• Creates a more stable and reliable decision boundary
• Enhances performance in high-dimensional data classification

Because of this, SVM is often referred to as a maximum margin classifier.

Kernel Trick in Support Vector Machine Explained

In many real-world problems, data is not linearly separable. This means you cannot draw a straight line or simple hyperplane to divide the classes.

The Solution: Kernel Trick

The kernel trick in support vector machine solves this problem by transforming data into a higher-dimensional space where separation becomes possible.

Instead of explicitly computing new dimensions, SVM uses kernel functions to map data efficiently.

Common Types of SVM Kernels

• Linear kernel – used when data is already linearly separable
• Polynomial kernel – captures interactions between features
• Radial Basis Function (RBF) – handles complex and nonlinear patterns
• Sigmoid kernel – behaves like a neural network activation function

Example of Kernel Trick

Consider a dataset shaped like a circle.

• In 2D space → cannot be separated using a straight line
• In higher dimensions → becomes separable with a plane

This transformation allows SVM to solve complex classification problems that other algorithms struggle with.

To learn more about the theory behind this concept, you can explore kernel methods in machine learning.

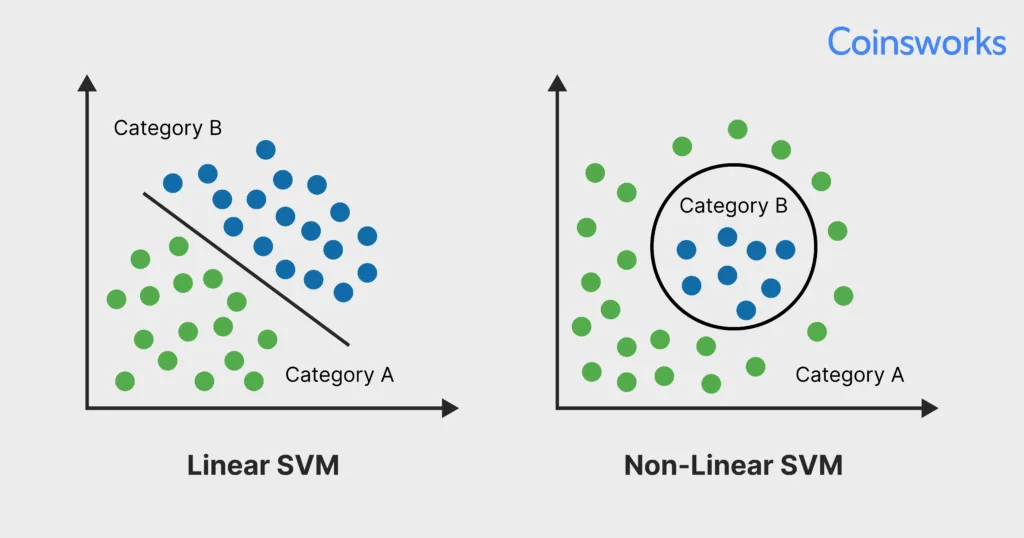

Types of Support Vector Machine

In Support Vector Machine Explained, understanding the different types of SVM helps you choose the right model for your data. Based on how the data is separated, SVM can be divided into two main types.

Linear SVM

A linear SVM is used when the data is linearly separable. This means you can draw a straight line (or hyperplane) to clearly divide the classes.

Because of its simplicity, linear SVM is often the first choice for many classification problems.

Key features:

• Simple and fast to train
• Works well with structured and clean datasets
• Performs efficiently in high-dimensional spaces
• Does not require complex transformations

Best use cases:

• Text classification
• Spam detection
• Basic binary classification tasks

Non-Linear SVM

A non-linear SVM is used when the data cannot be separated using a straight line. In such cases, the model uses the kernel trick to transform the data into a higher-dimensional space.

This allows SVM to find a more complex decision boundary.

Key features:

• Handles complex and nonlinear datasets
• Uses kernel functions like RBF and polynomial
• Captures hidden patterns in data
• More flexible than linear SVM

Best use cases:

• Image classification
• Face recognition
• Medical diagnosis
• Natural language processing tasks

Linear vs Non-Linear SVM (Quick Comparison)

Feature	Linear SVM	Non-Linear SVM
Data Type	Linearly separable	Nonlinear data
Speed	Faster	Slower
Complexity	Low	High
Kernel Usage	Not required	Required

Support Vector Classifier vs Support Vector Regression

In Support Vector Machine Explained, it is important to understand the difference between Support Vector Classifier (SVC) and Support Vector Regression (SVR). While both are based on the same SVM algorithm, they are used for different types of problems.

Key Differences Between SVC and SVR

Feature	SVC (Classification)	SVR (Regression)
Purpose	Classifies data into categories	Predicts continuous values
Output	Discrete labels (e.g., spam or not spam)	Continuous values (e.g., price)
Goal	Find a boundary that separates classes	Fit a function within a margin of tolerance
Example	Email spam detection	House price prediction

When to Use SVC vs SVR

Use Support Vector Classifier (SVC) when your task involves classification problems such as:

• Spam detection
• Image classification
• Sentiment analysis

Use Support Vector Regression (SVR) when your task involves predicting numerical values such as:

• Price prediction
• Demand forecasting
• Stock trend analysis

Although both methods rely on margin optimization, SVC focuses on separating classes, while SVR focuses on minimizing prediction error within a defined margin.

To explore more classification techniques in machine learning, check this guide.

Hard Margin vs Soft Margin SVM Explained

In Support Vector Machine Explained, understanding the difference between hard margin and soft margin SVM is essential for handling real-world data.

Hard Margin SVM

A hard margin SVM tries to separate data without allowing any misclassification.

Key characteristics:

• No errors are allowed during classification
• Works only when data is perfectly separable
• Very sensitive to noise and outliers

Because of these limitations, hard margin SVM is rarely used in real-world applications.

Soft Margin SVM

A soft margin SVM allows some misclassification to create a more flexible model.

Key characteristics:

• Allows small classification errors
• Uses the regularization parameter C to control the trade-off
• Balances margin size and classification accuracy

Why Soft Margin SVM is Preferred

In most practical scenarios, data is not perfectly clean. This is where soft margin SVM becomes more useful.

Benefits:

• Handles noisy and overlapping data effectively
• Improves model flexibility
• Reduces the risk of overfitting
• Provides better generalization on unseen data

Linear vs Nonlinear SVM Explained

Another important concept in Support Vector Machine Explained is the difference between linear and nonlinear SVM.

Key Differences

Aspect	Linear SVM	Nonlinear SVM
Data Type	Linearly separable data	Complex and nonlinear data
Speed	Faster to train and predict	Slower due to transformations
Complexity	Simple model	More complex model
Kernel Usage	Not required	Required (e.g., RBF, polynomial)

When to Use Linear vs Nonlinear SVM

Use linear SVM when:

• Data can be separated with a straight line
• You need faster training and prediction
• Dataset is large and relatively simple

Use nonlinear SVM when:

• Data has complex patterns
• Classes overlap in lower dimensions
• Higher accuracy is required over speed

Advantages and Disadvantages of Support Vector Machine

In Support Vector Machine Explained, understanding the strengths and limitations of the support vector machine algorithm helps you decide when to use it effectively.

Advantages of Support Vector Machine

A support vector machine offers several benefits, especially for complex classification tasks.

Key advantages:

• Works well with high-dimensional data
  SVM performs efficiently even when the number of features is large, making it ideal for text and image classification.
• Effective for small datasets
  Unlike many algorithms, SVM can deliver strong performance even with limited data.
• Robust to overfitting
  Thanks to margin maximization, SVM reduces the risk of overfitting and generalizes well to new data.
• Handles nonlinear data using kernel trick
  With the help of kernel functions, SVM can solve complex problems that are not linearly separable.
• Focuses on critical data points
  Only support vectors influence the model, which makes it efficient and precise.

Disadvantages of Support Vector Machine

Despite its strengths, SVM also has some limitations.

Key disadvantages:

• Not ideal for very large datasets
  Training time increases significantly with large datasets, making it less scalable.
• Requires careful kernel selection
  Choosing the right kernel and parameters (like C and gamma) can be challenging.
• Harder to interpret
  Compared to decision trees or linear models, SVM is less intuitive and more difficult to explain.
• Sensitive to parameter tuning
  Performance depends heavily on selecting the right hyperparameters.

To compare SVM with other machine learning models, explore this guide.

When to Use Support Vector Machine

In Support Vector Machine Explained, knowing when to use SVM is essential for building accurate and efficient models.

Use Support Vector Machine When

A support vector machine algorithm works best in the following scenarios:

• Dataset is small but complex
  SVM performs well even with limited data, especially when patterns are not simple.
• Data has clear margins between classes
  It is highly effective when there is a distinct separation between categories.
• High-dimensional data classification is required
  SVM handles datasets with many features, such as text or image data, very efficiently.
• You need strong generalization performance
  Margin maximization helps the model perform well on unseen data.

Avoid Support Vector Machine When

Despite its strengths, SVM is not suitable for every situation.

• Dataset is extremely large
  Training time increases significantly, making it less practical for big data.
• Real-time prediction is required
  SVM models can be slower compared to simpler algorithms.
• Data is highly noisy without clear separation
  Performance may drop if classes overlap heavily.

Real-World Applications of Support Vector Machine

A support vector machine (SVM) is widely used across different industries because of its ability to handle complex classification problems.

Common Use Cases of SVM

• Email spam detection
  Classifies emails as spam or not spam with high accuracy
• Face recognition systems
  Identifies and verifies individuals in images and videos
• Medical diagnosis
  Helps detect diseases by analyzing patient data
• Text classification
  Used in sentiment analysis and document categorization
• Stock market prediction
  Analyzes patterns to forecast trends and price movements

SVM continues to play a key role in real-world machine learning applications due to its reliability and performance.

SVM vs Logistic Regression vs Decision Tree

Comparing SVM with other algorithms helps you understand when it performs best and where alternatives may be more suitable.

Key Differences

Feature	SVM	Logistic Regression	Decision Tree
Decision Boundary	Maximum margin boundary	Probability-based boundary	Rule-based splits
Accuracy	High for complex data	Moderate for linear data	Varies
Complexity	Medium	Low	Low
Interpretability	Moderate	High	Very high

Key Insights

• SVM performs best when data has complex or nonlinear boundaries
• Logistic regression works well for simple, linear relationships
• Decision trees are ideal when interpretability is important

Because of these differences, choosing the right model depends on your dataset and problem goals.

Important Parameters in SVM

Understanding key parameters helps improve model performance without overcomplicating the model.

Regularization Parameter C

The regularization parameter C controls the balance between margin size and classification accuracy.

• High C → smaller margin, fewer errors, but risk of overfitting
• Low C → larger margin, more tolerance, better generalization

To see how this parameter affects model behavior in practice, explore this SVM regularization example using scikit-learn.

Gamma Parameter in SVM

Gamma defines how much influence a single data point has on the decision boundary.

Low gamma → smoother boundary (better generalization)

High gamma → more complex boundary (can overfit)

FAQ Section

Wrapping Up

Support Vector Machine Explained shows why SVM remains one of the most reliable algorithms in machine learning. By focusing on margin maximization and support vectors, it builds decision boundaries that are both accurate and robust.

Once you understand how SVM works step by step—along with key ideas like the hyperplane, margin, and kernel trick—you can confidently apply it to both classification and regression problems.

In practice, SVM performs especially well on complex and high-dimensional datasets, making it a valuable tool for real-world applications such as text classification, image recognition, and predictive modeling.

As you continue learning, try working with real datasets and experiment with different kernels and parameters. This hands-on approach will help you strengthen your understanding and use SVM effectively in real-world scenarios.
